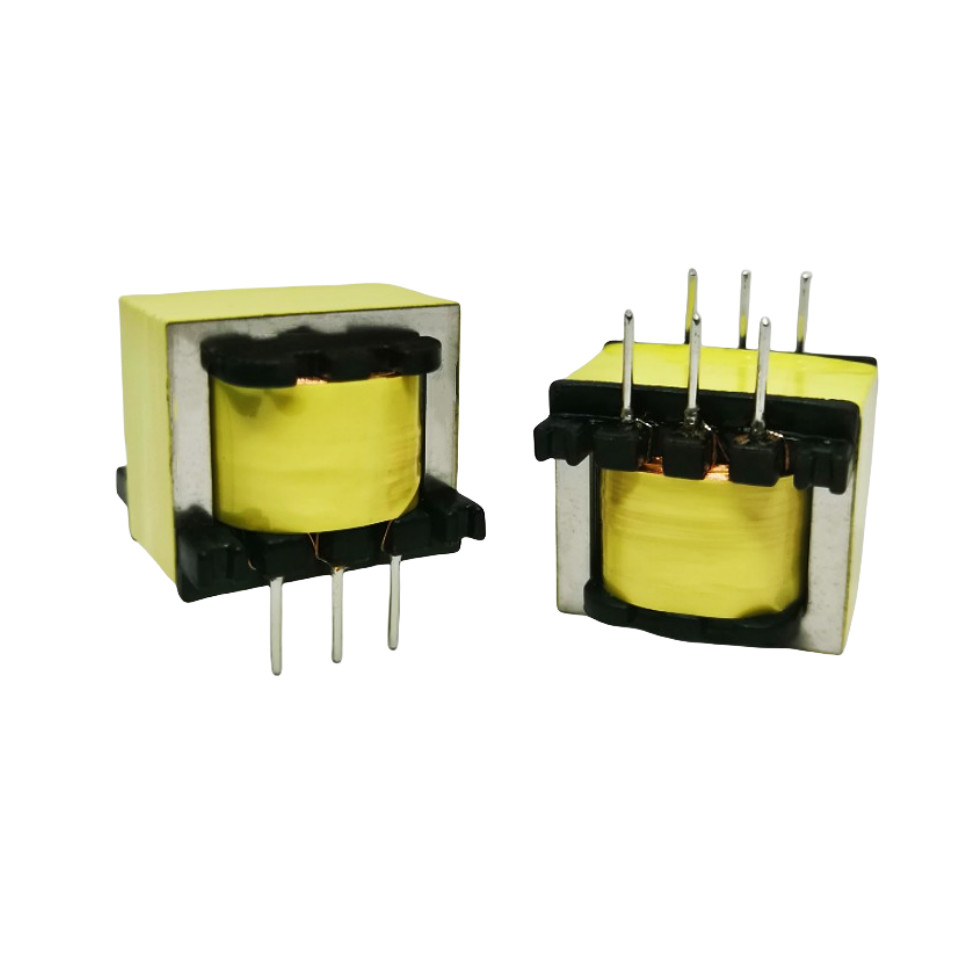

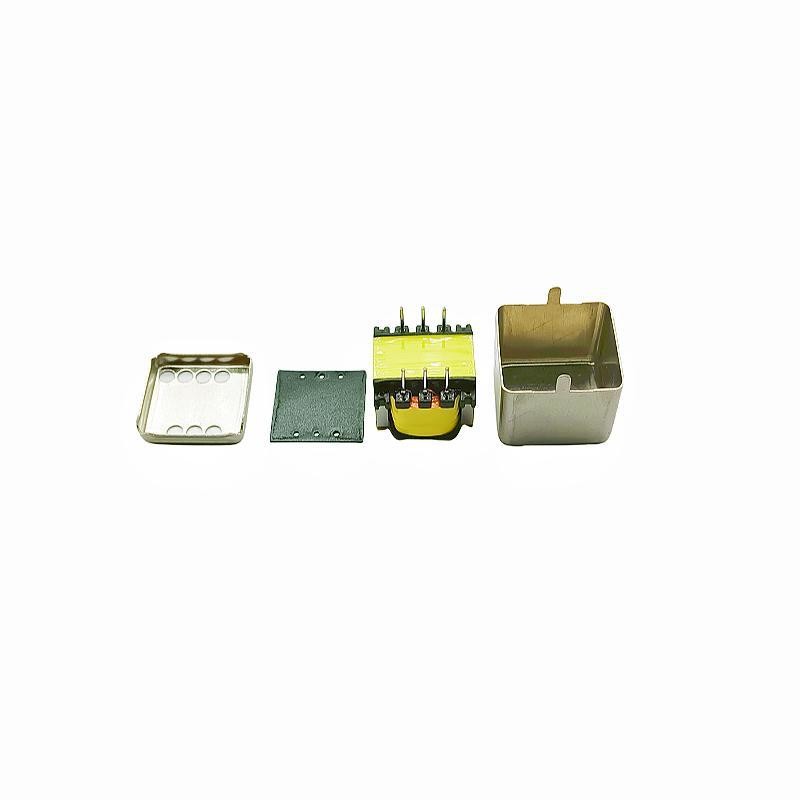

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer

Brand Name : ZXY

Model Number : ZXY2207

Certification : ISO/CE/ROHS

Place of Origin : Shenzhen city, China

MOQ : 1pcs

Price : $6.5pcs-$7/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500pcs per day

Delivery Time : 5-8 working days

Packaging Details : 36pcs/box, 8 boxes/Carton

Product Categories : permalloy audio transformer

Certifications : RoHS, CE,ISO

Phase Number : Single

Core Material : EE19/EI19

Impedance : 600ohm,10Kohm

Operating Temperature : -40°C to 125°C

Test Condition : 100HZ 0.3V

Wire Dia : 0.025~2.0 or customized

Frequency Range : 30Hz-30kHz

Turns Ratio : 1:1/1:4

Supplier Type : OEM/ODM

Lead time : 2-3 weeks for bulk order

Product key word : permalloy audio transformer

More details : Contact seller: thihoa@zxycoil.com

Contact Now

Description:

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer

Product Details
Bobbin Core Vertical EI19
Product specification 600:600 / 600:10K / 10K:10K / 10K:600
Turns of ratio 1:1 /1:4 / 4:1
Test condition 100HZ 0.3V Balance
Lead time Retail: within 7 days, bulk order 2-3 weeks
Dimensions L*W*H (22mm*22mm*18.3mm)

Materials: Nickel steel sheet containing 80% nickel, EI19 bobbin, enameled copper wire

Advantages of using nickel steel sheet material:

70%～81% Nickel alloy (Permalloy)
Permalloy in this composition range has the highest permeability. Generally, the μi of this alloy can reach 40~60mH/m. Its μi can reach more than 150 mH/m, and the μm can reach 1130 mH/m. The pressed powder core made of 2% 80%~82% Ni-Fe alloy powder has high resistance and good stability, and can be used at a frequency of 300Hz.

Transformers made of permalloy nickel steel sheets have the advantages of high permeability and high inductance.

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer

ZXY2207 Laminas Permalloy Audio Transformer 600:600/10K:10K /600:10K/ 10K:600 Vertical Pin Audio Isolator Transformer
