EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design

Model Number : ZXY-CW1B-1A-L

Rated Voltage : 115/250V AC (Single-Phase)

MOQ : Negotiable

Delivery Time : 3-4 Weeks

Leakage Current : <1mA (Typical, at 250V AC)

Payment Terms : L/C,D/A,D/P,T/T

Brand Name : ZXY

Rated Current : 6A

Packaging Details : Carton

Price : Negotiable

Temperature Range : -25°C to +85°C (Operating)

Supply Ability : Negotiable

Certification : RoHS、ISO9001、CE

Filter Type : Single-Stage EMI Suppression

Place of Origin : China

Operating Frequency : 50/60Hz

Contact Now

EMI Filter CW1B-1A-L 6A Power Purification Lead Type Single Phase AC Power Filter
Product Overview

A lead-type single-phase AC power filter is a compact electronic device designed to suppress electromagnetic interference (EMI) and radio-frequency interference (RFI) in single-phase AC power lines. It features integrated leads for easy installation, typically filtering noise in both differential-mode (line-to-line) and common-mode (line-to-ground) to ensure stable power supply and protect sensitive equipment. Commonly used in industrial controls, medical devices, and consumer electronics, it enhances system reliability by reducing harmonics, voltage spikes, and high-frequency noise while complying with EMC standards.

Key Features
  • Electromagnetic Interference Suppression: Effectively filters out high-frequency noise (conducted interference) in single-phase AC power supplies
  • Differential-Mode Noise Suppression: Reduces differential-mode interference between power lines (L-N) to prevent voltage fluctuations
  • Common-Mode Noise Suppression: Suppresses common-mode noise between power lines and ground (L-G/N-G), enhancing interference resistance
  • Surge & Spike Protection: Absorbs instantaneous voltage spikes and surges, protecting downstream equipment
  • Harmonic Reduction: Reduces power supply harmonics, improves power quality, and minimizes grid interference
  • Enhanced System Reliability: Minimizes power supply noise interference with sensitive electronic equipment
  • EMC Compliance: Meets electromagnetic compatibility requirements including CISPR, FCC, EN standards
  • Plug-and-Play Design: Lead-type design requires no additional wiring for easy installation
  • Component Protection: Prevents high-frequency noise from damaging ICs, sensors, and communication modules
  • Extended Equipment Lifespan: Reduces long-term damage caused by power supply contamination
Technical Specifications
Parameter Specification
Model CW1B-1A-L
Rated Current 6A
Rated Voltage 115/250V AC (Single-Phase)
Filter Type Single-Stage EMI Suppression
Insertion Loss High attenuation for both common-mode and differential-mode noise
Operating Frequency 50/60Hz (Designed for AC power lines)
Leakage Current <1mA (Typical, at 250V AC)
Temperature Range -25°C to +85°C (Operating)
Safety Standards Complies with UL, CE, and RoHS
Termination Type Lead Type (Pre-wired with insulated leads)
Housing Material Flame-retardant plastic or metal casing
Applications Power purification for industrial equipment, medical devices, telecom, and IoT
EMI Attenuation Effective noise suppression across 10kHz-30MHz range
Mounting Style Chassis mount or DIN rail

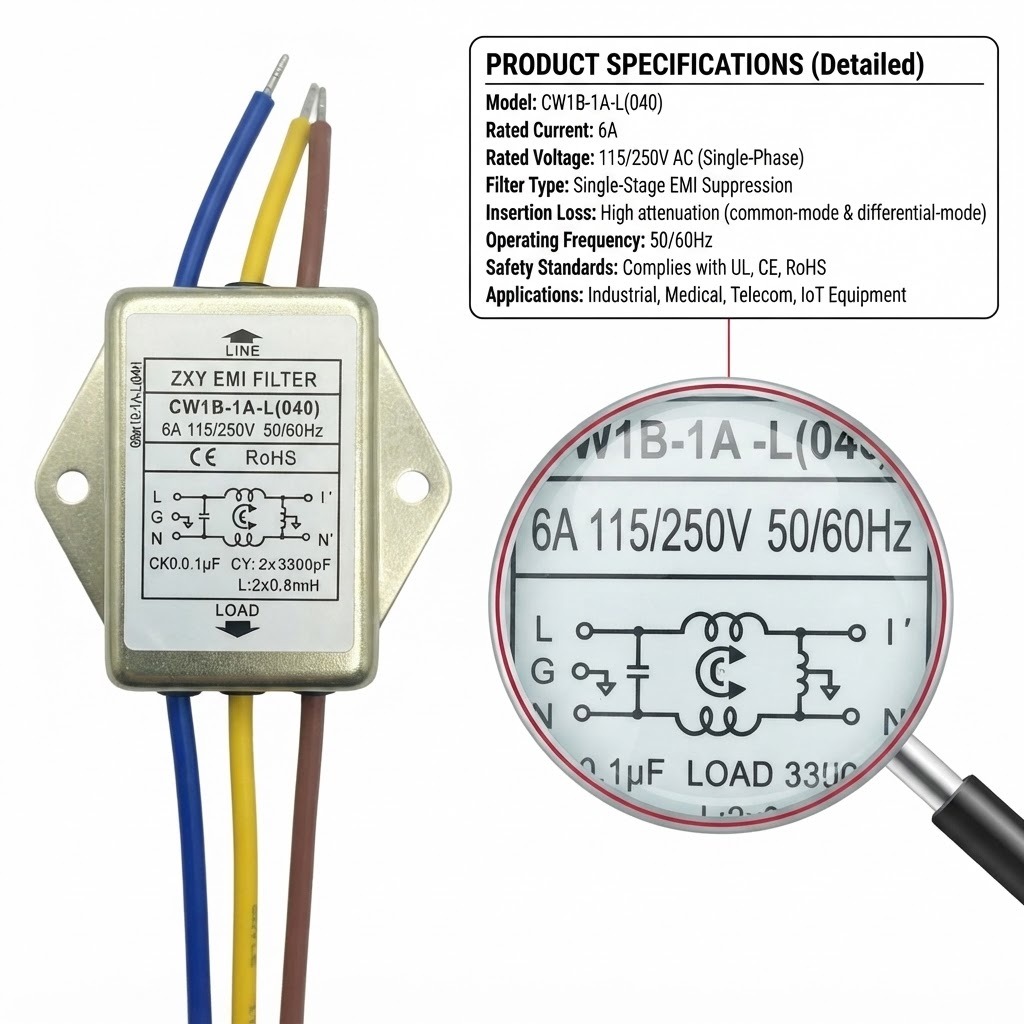

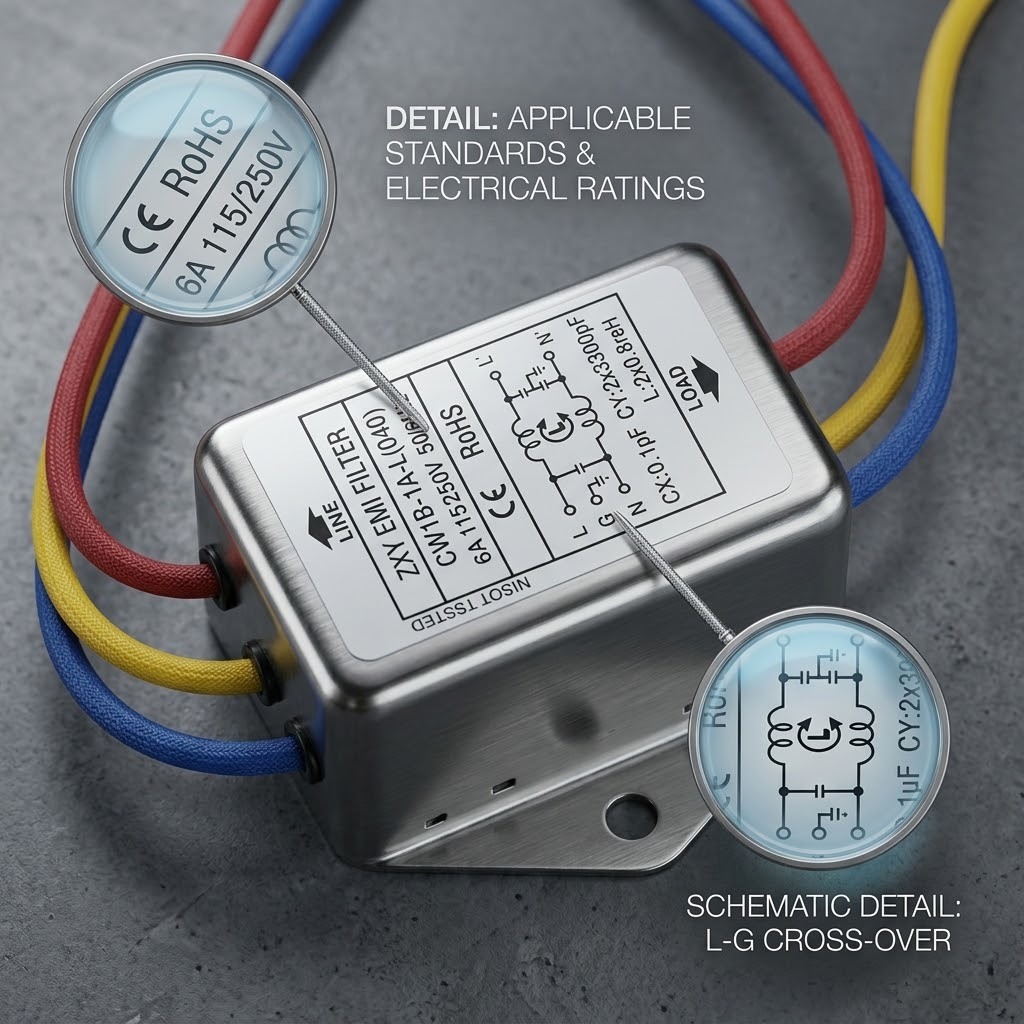

Product Images
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
About Our Company

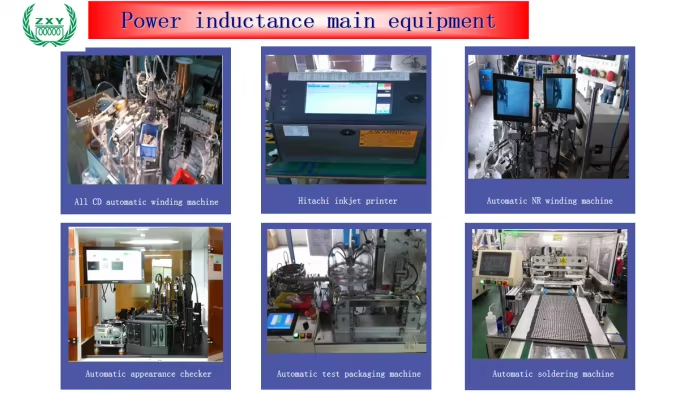

Shenzhen Zhixiangyuan Electronics Co., Ltd. With 26 years of experience in magnetic components manufacturing, we specialize in transformers, inductors, common mode chokes, and coils. As a direct factory, we provide OEM customization, free samples, and reliable production support with strict quality control and certifications including ISO9001, UL, CE, and RoHS. We look forward to supporting your projects and building a long-term partnership.

EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
EMI Filter CW1B-1A-L 6A High EMI Suppression Single Phase AC Power Filter with Plug-and-Play Design
